New Kyoritsu 1052 Digital Multimeters

Numéro de l'article:1052
L'article se trouve a Londres .La livraison pour la France dura ca 7-9 jours ouvrables, 3 ans Garantie, manuel en l'anglais.
Nous parlons francais
Achat immédiat: €349.00   Livraison gratuite
Quatité :
         Sous Total: €349.00
Ajouter au panier
Spécifications du fabricant:

New Kyoritsu 1052 Digital Multimeters

New kyoritsu 1052 digital multimeters, high Accuracy, high performance and reliable measurements, safety design for industrial use, reliable support for data management.

New kyoritsu 1052 digital multimeters, it is professional tester and with multi-function.What's more,it is easy to operate.A brand-new, unused, unopened, undamaged item in its original packaging. Our products have been exported to more than 40 countries over the world. We believe that during the days of economic and cultural globalization, the key point for running business successfully both at home and abroad is to be creative, considerate,passionate, committed and industrious.


Features:

  • 0.09% basic DC accuracy
  • Large display with 6,000 counts
  • True-RMS Measurements
  • True-RMS or MEAN value detection mode can be selected
  • Low-pass filter for motor drive measurements
  • User calibration function
  • Complies with IEC 61010-1 CAT.IV 600V
  • CAT.III 1000V
  • Terminal shutter to prevent incorrect test leads' insertion in current terminals
  • Very wide operating temperature range from-10 to 55ºC
  • Large data internal memory
  • KEW 1052: 1,600 data (logging), 100 data (manual)
  • Download data and Live Monitoring on a PC via the USB interface

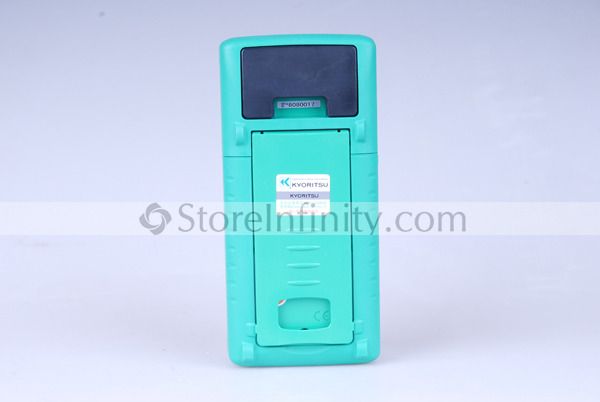

Closer Look:











Specifications:

Brand: Kyoritsu
Gross Weight: 0Kg
SKU: STINF-MT-0021




KEW 1051

KEW 1052

Detection mode

RMS

MEAN/RMS (switch)

DC V

600.0mV/6.000/60.00/600.0/1000V

(Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V])

±0.09%rdg±2dgt (Basic accuracy)

AC V [RMS]

600.0mV/6.000/60.00/600.0/1000V

(Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V],

10MΩ<50pF [60/600/1000V])

±0.5%rdg±5dgt (Basic accuracy)

DC A

600.0/6000µA/60.00/440.0mA/6.000/10.00A

±0.2%rdg±2dgt (Basic accuracy)

AC A [RMS]

600.0/6000µA/60.00/440.0mA/6.000/10.00A

±0.75%rdg±5dgt (Basic accuracy)



600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ

±0.4%rdg±1dgt (Basic accuracy)

Continuity buzzer

600.0Ω (The buzzer turns on for resistances lower than 50±30Ω)

Diode test

2.000V±1%rdg±2dgt

Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current)

Capacitance

10.00/100.0nF/1.000/10.00/100.0/1000µF

±2%rdg±5dgt (Basic accuracy)

Frequency

10.00~99.99/90.0~999.9Hz/0.900~9.999/9.00~99.99kHz

±0.02%rdg±1dgt (Basic accuracy)

Temperature

-50~600ºC±2%rdg±2ºC (with the use of K-type Temperature probe)

Other functions

Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H),

Maximum value (MAX) *, Minimum value (MIN) *, Average value (AVG) *, Zero Adjustment (Capacitor, Resistance), Save to Memory *,

LCD backlight

Withstand voltage

6,880V/5 sec.

Applicable

IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree 2,

standards

IEC 61010-031, IEC 61326-1 (EMC)

Power source

R6P (1.5V)×4 (Auto power off: approx. 20 minutes)

Dimensions

192(L)×90(W)×49(D) mm





Package Includes:

1 x New Kyoritsu 1052 Digital Multimeters
1 x Original Package
